ZOOM Bike Brakes MTB Bicycle Front Rear Brake Aluminum Alloy Mechanical Disc Bidirectional Caliper Brake With Disc F160 R160

$127.86$296.01

SKU: 1005002398563861 Category:

Product Description

  • Origin: CN(Origin)
  • Braking System: Line Pulling Disc Brake
  • Model Number: ZOOM DB-680
  • Size: 51mm & 71mm
  • Components: Disc Brake
  • Use: BMX
  • Use: Mountain Bikes
  • Use: Road Bicycles
  • Material: Light Alloy
  • Materia: 6061-T6 aluminum alloy
  • Weight: 465g/pair(approx)
  • Braking System: Line Pulling Disc Brake
  • Braking System: Other
  • Front brake: 160mm rotor
  • Rear Brake: 160mm rotor
  • Feature: brake disk
  • Feature 1: bike brake
  • Feature 2: frenos bicicleta
  • Feature 3: Bike Bidirectional Braking brake
  • Feature 4: Will not damage the brake disc
  • Feature 5: Resin brake pad
  • Feature 6: bicycle brakes
  • Feature 7: brake pads
  • Feature 8: disc brakes
  • Feature 9: Double Brake

ZOOM bilateral drive brake features:

1. Double-piston, double-side drive, convenient adjustment, and hand feeling directly chasing oil disc brake.

2. The innovative patent design of the engine-type brake line disc provides superior braking performance. The double-sided drive mechanic line-controlled disc brake designed by ZOOM Xinlong provides more accurate clamping force, and the brake feel is even more directly chasing the oil-pressure disc brake. With a simple caliper adjuster, it can be easily adjusted without the trouble that the oil disc brake needs to be maintained. Ultra-light double-pull rod is designed to operate bilaterally, which is an innovative product in the market at present.

3. The braking effect exceeds the ordinary unilateral action line discs on the market, such as bb7, bb5, and the full series of Ximano line discs, etc. The position of the discs and clamps has always been polluted by riders, and these clamps are only the outside to force the plates; If the disc is too close to the outside, it will cause the disc to deform inward under the brake squeeze, which will damage the stability of the disc structure in the long run.

ZOOM bicycle Line Disc Brake

Category: Bilateral Braking Line Disc Brakes
Model: DB-680
Material: Aluminum Alloy
Weigh About 463g (one pair)
Color:Black/red
Applicable: 160MM disc
Installation size: 75mm 51mm
Process: Bilateral brake anodic oxidation

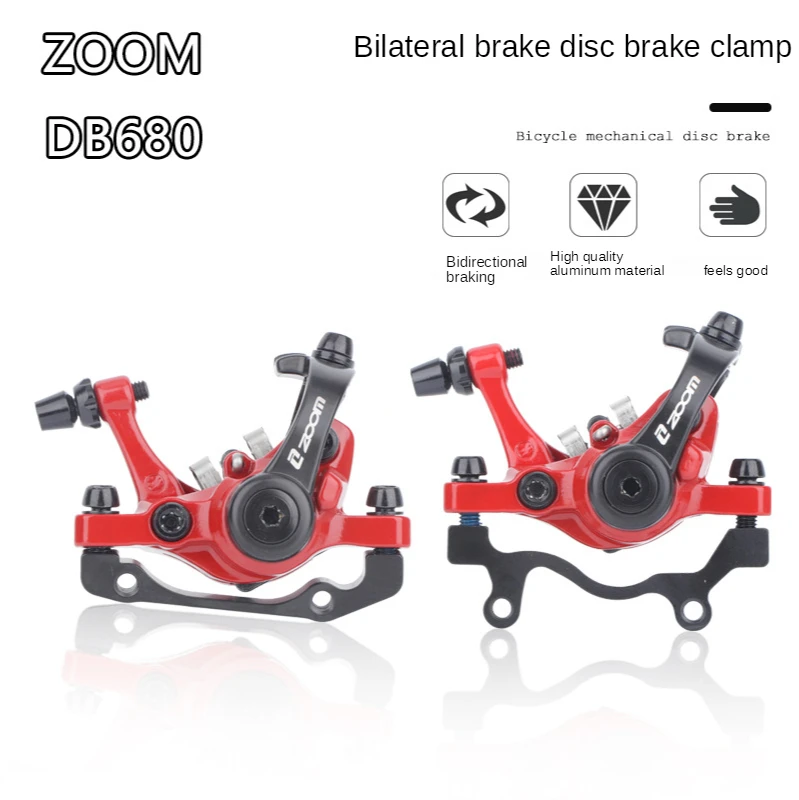

Bilateral brake disc brake clamp

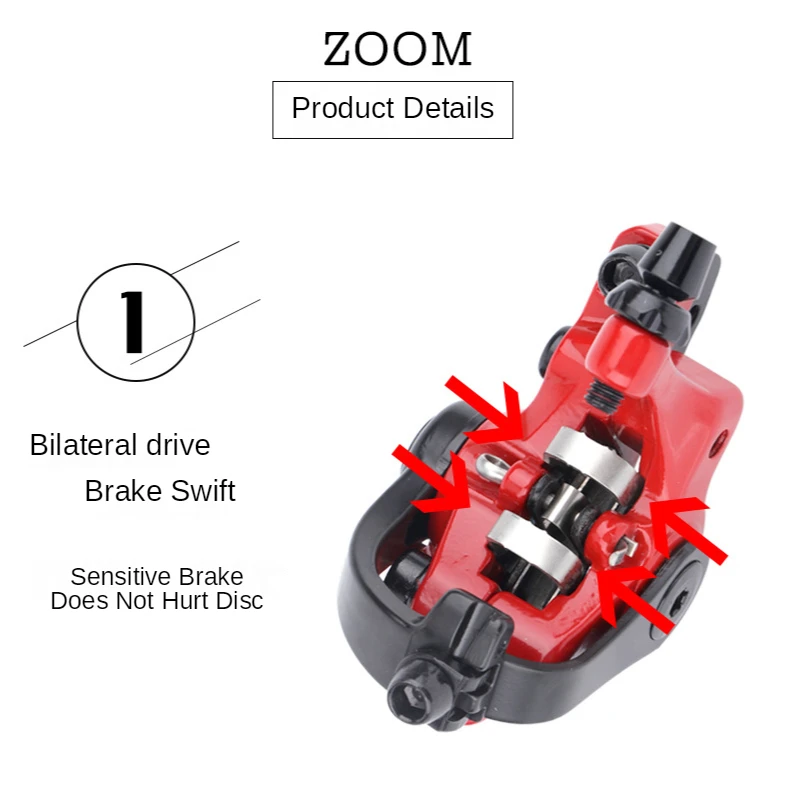

Bilateral drive,Brake Swift,Sensitive Brake,Does Not Hurt Disc

Die Casting Integrated molding,Stable body forming process structure

High Strength Aluminum Alloy Material,High-strength maintenance-free easy maintenance

Anodic Oxidation Process,Two-Color Optional Appearance Beautiful and Generous

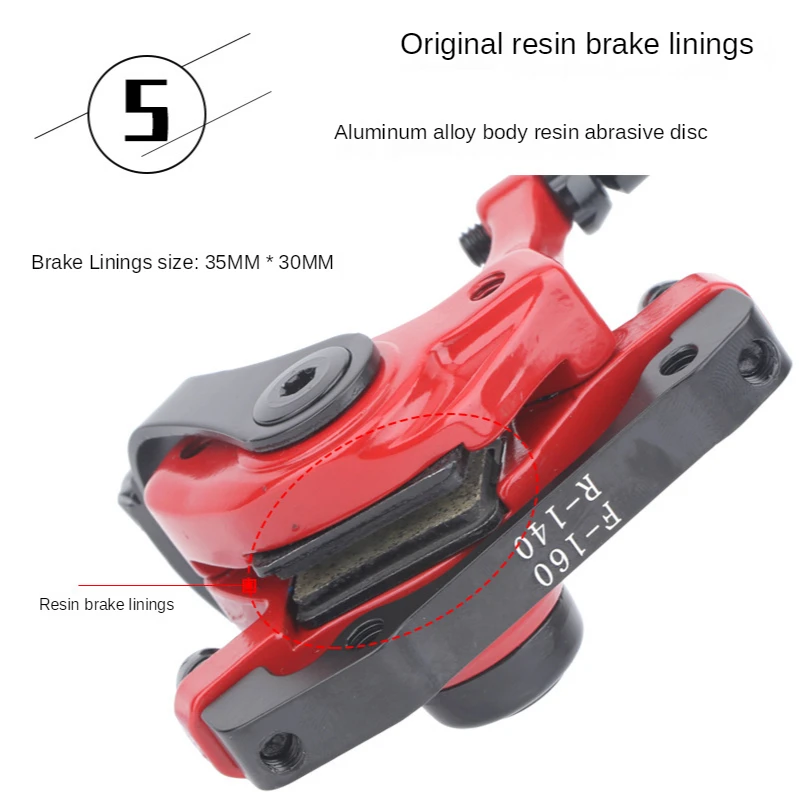

Original resin brake linings,Aluminum alloy body resin abrasive disc

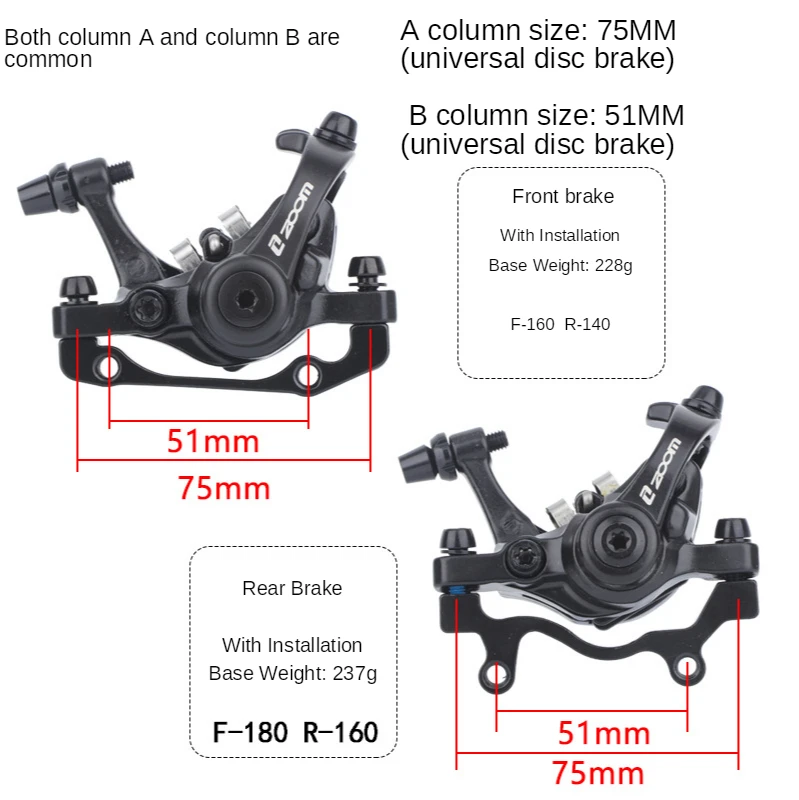

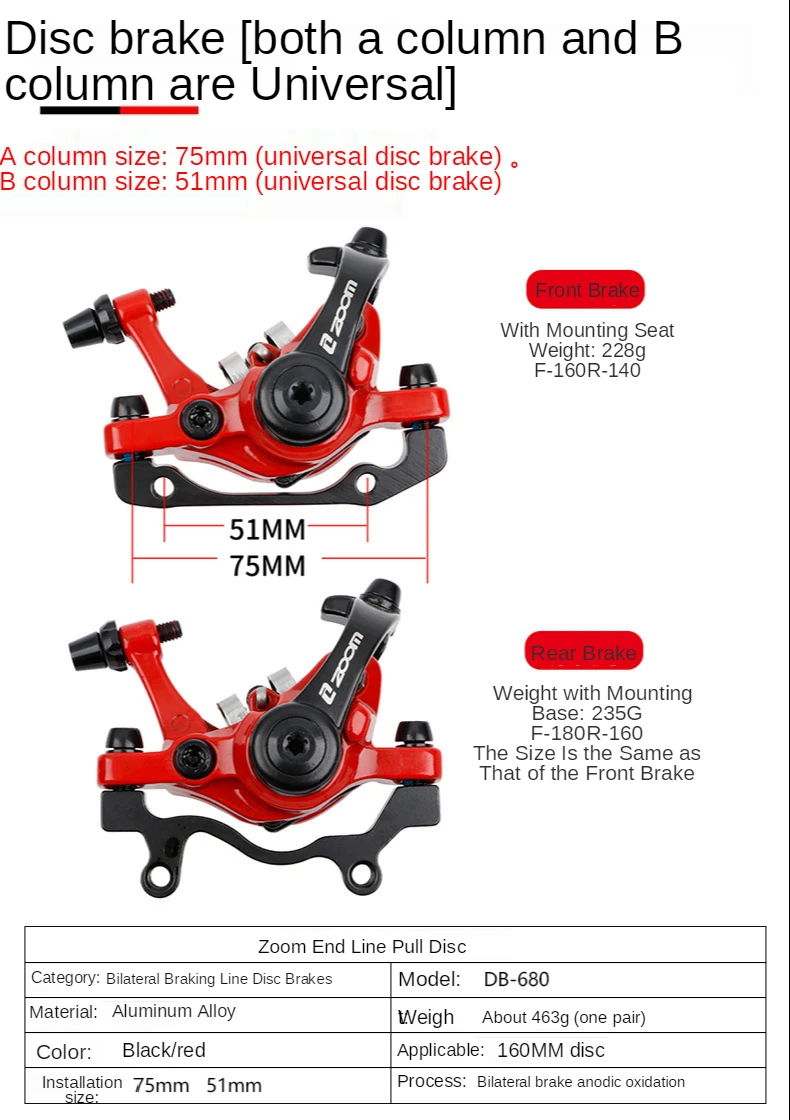

A column size: 75MM
(universal disc brake)
B column size: 51MM
(universal disc brake)

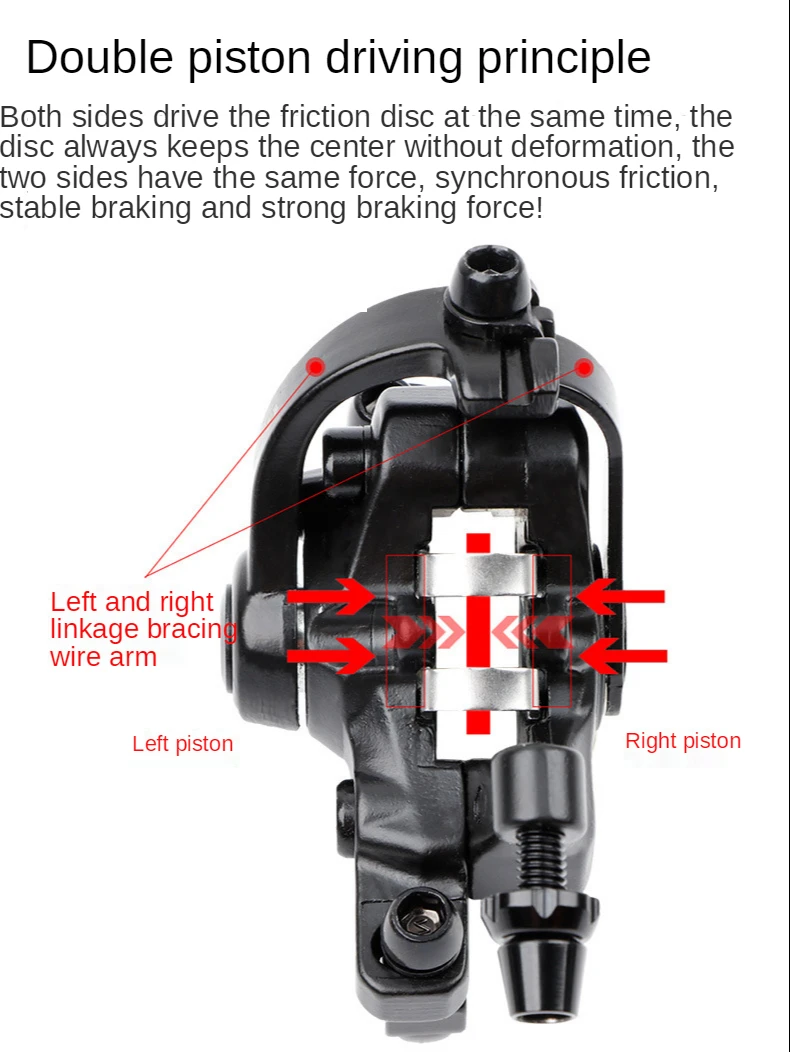

Double piston driving principle

Both sides drive the friction disc at the same time, the disc always keeps the center without deformation, the two sides have the same force, synchronous friction, stable braking and strong braking force!

Unilateral Brake Easy to Wipe Disc:
Elastic deformation friction to the other side for a long time, the disc is easy to change. left and right fiction uneven brake force is limited

Bilateral Braking Stability
Does Not Hurt Disc,Both sides drive friction disc disc at the same time, the disc always keeps the center without deformation, and the two sides have the same force synchronous friction brake is stable' and strong braking

Note: F = Front of, R = Rear

1:F1 60R140 Refers to the Front and Rear Wheel Can-, but Installed in Front Wheel, brake Disc Size Must Be 160mm. Mounted Rear Wheel,Brake Disc of Size Must Be 1 40mm
2: The F180R160 Refers to the Front and Rear Wheel Can-, but Installed in Front Wheel, brake Disc Size Must Be To180mm. Mounted Rear Wheel,Brake Disc of Size Must Be 160mm

Disassembling display diagram of clamp
1:Disc brake installation base
2:Brake linings
3:Disc brake body
4:Brake Linings accessories
5:logo
6: 4*screws

Display of brake installation effect
